STAR ER Collet Holders ER08M / ER11M

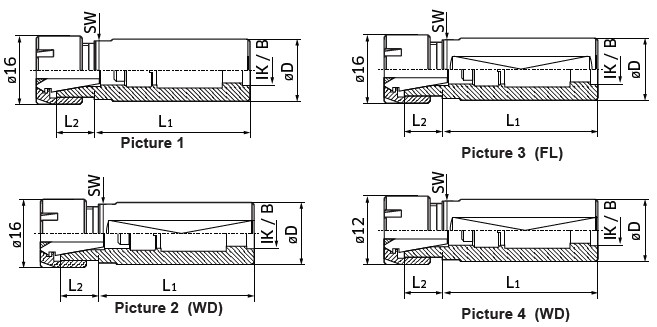

STAR Collet Holders
WD - Throughout flat
FL - No throughout flat
IK - Thread size
B - Hole diameter
Item # |
Collet |
Dimension D |
Dimension L1 |
Dimension L2 |
IK |
Dimension SW |
Ref Pic |
Nut |
Wrenches |
Inventory |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EM081645WD EM081645WD/Asset/ER08M collet holder.jpg | Collet N/A ER08 | Dimension D N/A 16 mm | Dimension L1 N/A 45 mm | Dimension L2 N/A 9.5 mm | IK N/A 7 | Dimension SW N/A 14 mm | Ref Pic N/A 2 STAR 4 | Nut N/A ER08M | Wrenches N/A E08M | Inventory N/A |
Add To Cart
Request Quote |
| EM111620 EM111620/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 20 mm | Dimension L2 N/A 12 mm | IK N/A 7 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111630 EM111630/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 30 mm | Dimension L2 N/A 12 mm | IK N/A 8.5 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111638IKWD EM111638IKWD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 38 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111650IK EM111650IK/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 50 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 13 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111650IKWD EM111650IKWD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 50 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111675IKTWD EM111675IKTWD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 75 mm | Dimension L2 N/A 15 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111680 EM111680/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 80 mm | Dimension L2 N/A 12 mm | IK N/A 8 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111680IKFL EM111680IKFL/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 80 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 3 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116100IK EM1116100IK/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 100 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116100IKFL EM1116100IKFL/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 100 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 3 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116125 EM1116125/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 125 mm | Dimension L2 N/A 12 mm | IK N/A 6 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116140 EM1116140/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 140 mm | Dimension L2 N/A 12 mm | IK N/A | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116140IKFL EM1116140IKFL/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 140 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 3 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116150IK EM1116150IK/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 150 mm | Dimension L2 N/A | IK N/A G1/8 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM1116160 EM1116160/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 160 mm | Dimension L2 N/A 15.5 mm | IK N/A 8 | Dimension SW N/A 14 mm | Ref Pic N/A 1 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM112270IKWD EM112270IKWD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 22 mm | Dimension L1 N/A 70 mm | Dimension L2 N/A 12 mm | IK N/A G1/8 | Dimension SW N/A 19 mm | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM112290IKOSWD EM112290IKOSWD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 22 mm | Dimension L1 N/A 90 mm | Dimension L2 N/A 12 mm | IK N/A G1/4 | Dimension SW N/A | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
| EM111620WD EM111620WD/Asset/ER11M collet holder.jpg | Collet N/A ER11 | Dimension D N/A 16 mm | Dimension L1 N/A 20 mm | Dimension L2 N/A 12 mm | IK N/A 7 | Dimension SW N/A 14 mm | Ref Pic N/A 2 | Nut N/A ER11M | Wrenches N/A E11M | Inventory N/A |
Add To Cart
Request Quote |
