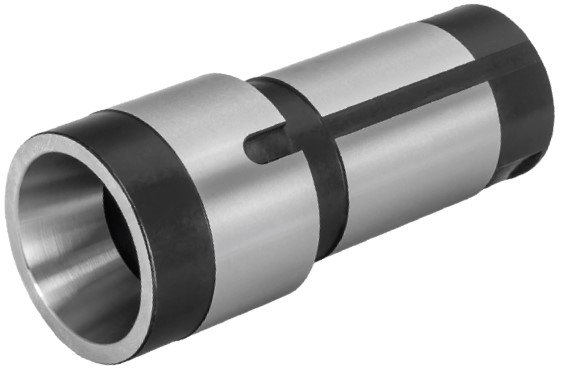

  • collet sleeve

Available with a pin in the shank or the cone on request



1 - 25 of 40 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items

Item #

Machine

STAR Part Number

Spindle

Smallest Inner Diam.

Dimension D

Dimension d

Dimension L

Extension

Collet

Springs

Inventory

Add To Cart/Request Quote
N/A SL7 N/A P0-45180 N/A A N/A 8 mm N/A 31.5 mm N/A 27 mm N/A 91 mm N/A N/A TF10 N/A N/A Add To Cart
Request Quote
N/A SL7 N/A P0-40110 N/A B N/A 7.5 mm N/A 24 mm N/A 20 mm N/A 107.5 mm N/A N/A TF10 N/A N/A Add To Cart
Request Quote
N/A SL7 N/A N/A B N/A 7.5 mm N/A 24 mm N/A 20 mm N/A 107.5 mm N/A 10 mm N/A TF8 N/A N/A Add To Cart
Request Quote
N/A SR10J N/A 380-32-020 N/A A N/A 11 mm N/A 27 mm N/A 21 mm N/A 83 mm N/A N/A TF15 N/A DF15F11.5-28 N/A Add To Cart
Request Quote
N/A SR10J N/A 69372-010 N/A B N/A 11.5 mm N/A 24 mm N/A 20 mm N/A 81 mm N/A N/A TF15 N/A DF15F11.5-28 N/A Add To Cart
Request Quote
N/A SL10 N/A N/A A N/A 12.5 mm N/A 31.5 mm N/A 27 mm N/A 89.5 mm N/A N/A TF13 N/A N/A Add To Cart
Request Quote
N/A SL10 N/A 38850 N/A A N/A 12.5 mm N/A 31.5 mm N/A 27 mm N/A 89.5 mm N/A N/A TF15 N/A N/A Add To Cart
Request Quote
N/A SA12 N/A 210-34-040 N/A A N/A 16.5 mm N/A 42 mm N/A 34 mm N/A 87 mm N/A N/A TF20 N/A DF20F16.5-30 N/A Add To Cart
Request Quote
N/A SA12 N/A 45371-010 46373-010 N/A B N/A 19.4 mm N/A 31.5 mm N/A 31.5 mm N/A 87.5 mm N/A N/A TF20 N/A DF20F17-25 N/A Add To Cart
Request Quote
N/A SB12R-G N/A 1L353-010 N/A A N/A 13.5 mm N/A 30 mm N/A 27 mm N/A 90 mm N/A N/A TF16 N/A DF15F11.5-33 N/A Add To Cart
Request Quote
N/A SB12R-G N/A 0M393-020 N/A B N/A 15.8 mm N/A 42 mm N/A 35 mm N/A 106 mm N/A N/A TF16 N/A N/A Add To Cart
Request Quote
N/A SW12R II N/A 1H374-010 N/A B N/A 16.0 mm N/A 29.5 mm N/A 27 mm N/A 90.5 mm N/A N/A TF16 N/A N/A Add To Cart
Request Quote
N/A ECAS20 N/A 57372-010 N/A B N/A 24.0 mm N/A 41.5 mm N/A 38/35 mm N/A 101.5 mm N/A N/A TF25 N/A DF25F22-25 N/A Add To Cart
Request Quote
N/A ECAS20 N/A N/A B N/A 24.0 mm N/A 41.5 mm N/A 38/35 mm N/A 101.6 mm N/A N/A TF27 N/A DF27F23-28 N/A Add To Cart
Request Quote
N/A ECAS20 N/A N/A B N/A 24.0 mm N/A 41.5 mm N/A 38/35 mm N/A 104.5 mm N/A N/A TF27 N/A DF27F23-35 N/A Add To Cart
Request Quote
N/A SR20JN N/A 0E357-010 N/A A N/A 21.0 mm N/A 42 mm N/A 35 mm N/A 101 mm N/A N/A TF25 N/A N/A Add To Cart
Request Quote
N/A SR20JN N/A N/A A N/A 23.5 mm N/A 42 mm N/A 35 mm N/A 103 mm N/A N/A TF27 N/A DF27F23-32 N/A Add To Cart
Request Quote
N/A SR20R I / II / III N/A 54823-010 N/A A N/A 22.0 mm N/A 43.4 mm N/A 38/34 mm N/A 110 mm N/A N/A TF25 N/A DF25F22-44 N/A Add To Cart
Request Quote
N/A SR20R I / II / III N/A N/A A N/A 24.0 mm N/A 43.4 mm N/A 38/34 mm N/A 110 mm N/A N/A TF27 N/A DF27F23-35 N/A Add To Cart
Request Quote
N/A SR20R I / II / III N/A 42375-020 532-32-190 N/A B N/A 23.0 mm N/A 42 mm N/A 35 mm N/A 101 mm N/A N/A TF25 N/A N/A Add To Cart
Request Quote
N/A SR20R IV N/A OM353-010 OT353-010 N/A A N/A 20.5 mm N/A 43.5 mm N/A 38/34 mm N/A 107 mm N/A N/A TF25 N/A DF25F22-44 N/A Add To Cart
Request Quote
N/A SR20R IV N/A N/A A N/A 24.0 mm N/A 43.5 mm N/A 38/34 mm N/A 109 mm N/A N/A TF27 N/A DF27F23-35 N/A Add To Cart
Request Quote
N/A SV20 N/A 42355-020 N/A A N/A 22.0 mm N/A 42 mm N/A 35 mm N/A 105 mm N/A N/A TF25 N/A N/A Add To Cart
Request Quote
N/A SP23 N/A 1L359-010 N/A A N/A 26.0 mm N/A 47.5 mm N/A 42/38 mm N/A 109 mm N/A N/A TF30 N/A N/A Add To Cart
Request Quote
N/A SP23 N/A N/A A N/A 26.0 mm N/A 47.5 mm N/A 42/38 mm N/A 109 mm N/A N/A TF25 N/A N/A Add To Cart
Request Quote
