Boring Bar Sleeves
All Categories
Number of clamping flats and thread holes may vary from the shown drawings
Item # |
Dimension d |
Dimension D |
Dimension C |
Dimension B |
Dimension L1 |
Dimension L |
IK |
Ref Pic |
Inventory |
Add To Cart/Request Quote |
|---|---|---|---|---|---|---|---|---|---|---|

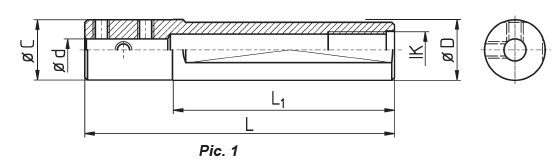

| ABS691-41 ABS691-41/Asset/boring bar 1.jpg | Dimension d N/A 4 mm | Dimension D N/A 16 mm | Dimension C N/A 15.8 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 90 mm | IK N/A 8.4 | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS691-42 ABS691-42/Asset/boring bar 1.jpg | Dimension d N/A 6 mm | Dimension D N/A 16 mm | Dimension C N/A 15.8 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 90 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS691-08IK ABS691-08IK/Asset/boring bar 1.jpg | Dimension d N/A 8 mm | Dimension D N/A 16 mm | Dimension C N/A 15.8 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 90 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1903IK ABS1903IK/Asset/boring bar 1.jpg | Dimension d N/A 3 mm | Dimension D N/A 3/4 in | Dimension C N/A 18.8 mm | Dimension B N/A | Dimension L1 N/A 52 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1904IK ABS1904IK/Asset/boring bar 1.jpg | Dimension d N/A 4 mm | Dimension D N/A 3/4 in | Dimension C N/A 18.8 mm | Dimension B N/A | Dimension L1 N/A 52 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1905IK ABS1905IK/Asset/boring bar 1.jpg | Dimension d N/A 5 mm | Dimension D N/A 3/4 in | Dimension C N/A 18.8 mm | Dimension B N/A | Dimension L1 N/A 52 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1906IK ABS1906IK/Asset/boring bar 1.jpg | Dimension d N/A 6 mm | Dimension D N/A 3/4 in | Dimension C N/A 18.8 mm | Dimension B N/A | Dimension L1 N/A 52 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |

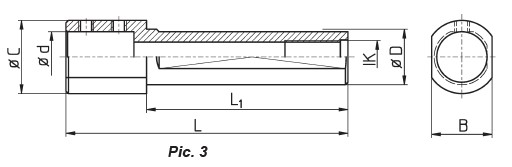

| ABS1908IK ABS1908IK/Asset/boring bar 3.jpg | Dimension d N/A 8 mm | Dimension D N/A 3/4 in | Dimension C N/A 22 mm | Dimension B N/A 20 mm | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1910IK ABS1910IK/Asset/boring bar 3.jpg | Dimension d N/A 10 mm | Dimension D N/A 3/4 in | Dimension C N/A 25 mm | Dimension B N/A 20 mm | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1912IK ABS1912IK/Asset/boring bar 3.jpg | Dimension d N/A 12 mm | Dimension D N/A 3/4 in | Dimension C N/A 25 mm | Dimension B N/A 20 mm | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/8" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS1916IK ABS1916IK/Asset/boring bar 3.jpg | Dimension d N/A 16 mm | Dimension D N/A 3/4 in | Dimension C N/A 30 mm | Dimension B N/A 20 mm | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS2006IK ABS2006IK/Asset/boring bar 3.jpg | Dimension d N/A 6 mm | Dimension D N/A 20 mm | Dimension C N/A 28 mm | Dimension B N/A | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS2008IK ABS2008IK/Asset/boring bar 3.jpg | Dimension d N/A 8 mm | Dimension D N/A 20 mm | Dimension C N/A 28 mm | Dimension B N/A | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS2010IK ABS2010IK/Asset/boring bar 3.jpg | Dimension d N/A 10 mm | Dimension D N/A 20 mm | Dimension C N/A 28 mm | Dimension B N/A | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS2012IK ABS2012IK/Asset/boring bar 3.jpg | Dimension d N/A 12 mm | Dimension D N/A 20 mm | Dimension C N/A 28 mm | Dimension B N/A | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |
| ABS2016IK ABS2016IK/Asset/boring bar 3.jpg | Dimension d N/A 16 mm | Dimension D N/A 20 mm | Dimension C N/A 30 mm | Dimension B N/A | Dimension L1 N/A 40 mm | Dimension L N/A 70 mm | IK N/A G1/4" | Ref Pic N/A 3 | Inventory N/A |
Add To Cart
Request Quote |

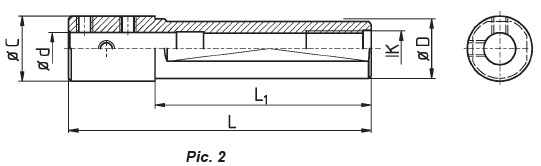

| ABS736-44IK ABS736-44IK/Asset/boring bar 2.jpg | Dimension d N/A 22 mm | Dimension D N/A 6 mm | Dimension C N/A 24 mm | Dimension B N/A | Dimension L1 N/A 70 mm | Dimension L N/A 105 mm | IK N/A G1/4" | Ref Pic N/A 2 | Inventory N/A |
Add To Cart
Request Quote |
| ABS736-40IK ABS736-40IK/Asset/boring bar 2.jpg | Dimension d N/A 8 mm | Dimension D N/A 22 mm | Dimension C N/A 24 mm | Dimension B N/A | Dimension L1 N/A 70 mm | Dimension L N/A 105 mm | IK N/A G1/4" | Ref Pic N/A 2 | Inventory N/A |
Add To Cart
Request Quote |
| ABS736-41IK ABS736-41IK/Asset/boring bar 2.jpg | Dimension d N/A 10 mm | Dimension D N/A 22 mm | Dimension C N/A 24 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 105 mm | IK N/A G1/4" | Ref Pic N/A 2 | Inventory N/A |
Add To Cart
Request Quote |
| ABS736-42IK ABS736-42IK/Asset/boring bar 2.jpg | Dimension d N/A 12 mm | Dimension D N/A 22 mm | Dimension C N/A 24 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 105 mm | IK N/A G1/4" | Ref Pic N/A 2 | Inventory N/A |
Add To Cart
Request Quote |
| WD032280IK WD032280IK/Asset/boring bar 1.jpg | Dimension d N/A 3 mm | Dimension D N/A 22 mm | Dimension C N/A 21.7 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 112 mm | IK N/A G1/4" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| WD312280IK WD312280IK/Asset/boring bar 1.jpg | Dimension d N/A 1/8 in | Dimension D N/A 22 mm | Dimension C N/A 31.7 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 112 mm | IK N/A G1/4" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| WD042280IK WD042280IK/Asset/boring bar 1.jpg | Dimension d N/A 4 mm | Dimension D N/A 22 mm | Dimension C N/A 21.7 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 112 mm | IK N/A G1/4" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| WD472280IK WD472280IK/Asset/boring bar 1.jpg | Dimension d N/A 3/16 in | Dimension D N/A 22 mm | Dimension C N/A 21.7 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 112 mm | IK N/A G1/4" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
| WD052280IK WD052280IK/Asset/boring bar 1.jpg | Dimension d N/A 5 mm | Dimension D N/A 22 mm | Dimension C N/A 21.7 mm | Dimension B N/A | Dimension L1 N/A 80 mm | Dimension L N/A 112 mm | IK N/A G1/4" | Ref Pic N/A 1 | Inventory N/A |
Add To Cart
Request Quote |
